Small Size Pulse Dust Collector Connected with Automatic Mortar Prodution Line
Description of Dust Collecting System
Impulse dust collector adopts the single pulse injection cleaning method, which has the advantages of good cleaning effect, high purification efficiency and high handling capacity, longer service life of Filter-bag, less maintenance to ensure its safe and reliable in operation. The system is widely used in metallurgy, building materials, machinery, chemical industry, mining and other industrial enterprises of non-fiber industrial dust removal and material recovery.
Working principle of Impulse Dust Collector Pulse Dust Collector
The working principle of dust collector:the dust gas enters into the filter chamber by the ash bucket (or the lower open flange), and the rough particles directly drops in the ash bucket or ash bin. Filtered through the Filter-bag, the dust is kept in the bag table while the net gas is passed through the bag to the air cleaning chamber, in which the air is discharged into the atmosphere by the fan.
When the dust on the surface of the filter is increasing, leading to the equipment resistance rises to the set value, the time relay (or the micro differential pressure controller) will release the signal. Meanwhile, the program control instrument began to work, and the pulse valve is opened one by one, so that the compressed air is injected through the nozzle to clean the Filter-bag. During this process, the Filter-bag is abruptly inflated, the dust in the bag surface quickly detaches from the Filter-bag and falls into the dust (or ash bin) under the action of the reverse airflow, then the dust is discharged by the flap valve. In addition, The line by line process of injection is only for the filter-bags cleaning, and other Filter-bags are still filtered normally.
Technical Parameter of Dust Collecting System
| Model | MG-5.0 | MG-5.1 | MG-5.2 | MG-5.3 |
| Dust bag | 9 | 16 | 25 | 36 |
| Filtration area (m2) | 6.5 | 11.6 | 18.1 | 26 |
| Air Volume(m3/h) | 1334-1896 | 2670-5270 | 4020-7420 | 5730-10580 |
| Wind Pressure(Pa) | 2370-2770 | 1000-1600 | 1340-2040 | 1700-2580 |
| Power(Kw) | 2.2 | 4.0 | 7.5 | 15.0 |
The dust collector equip on full automatic dry mortar plant:

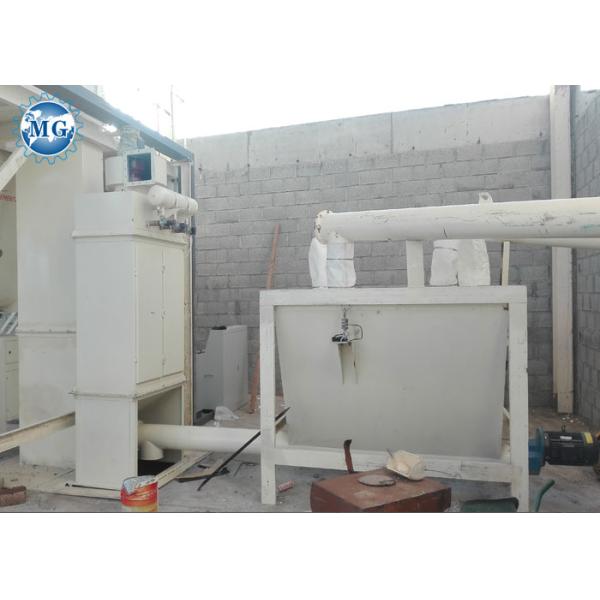

The dust collector connected with weighting hopper :
Delivery and transportation of the dust collector:
Application of Dust Collecting System:
The simple dry mortar plant can produce the following dry mortars: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc. Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.
